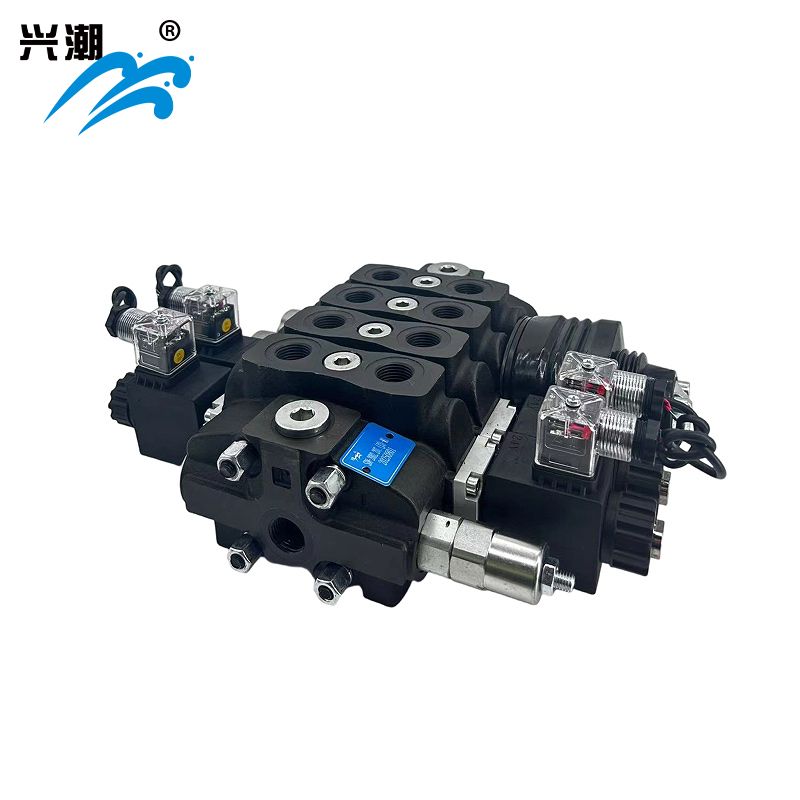

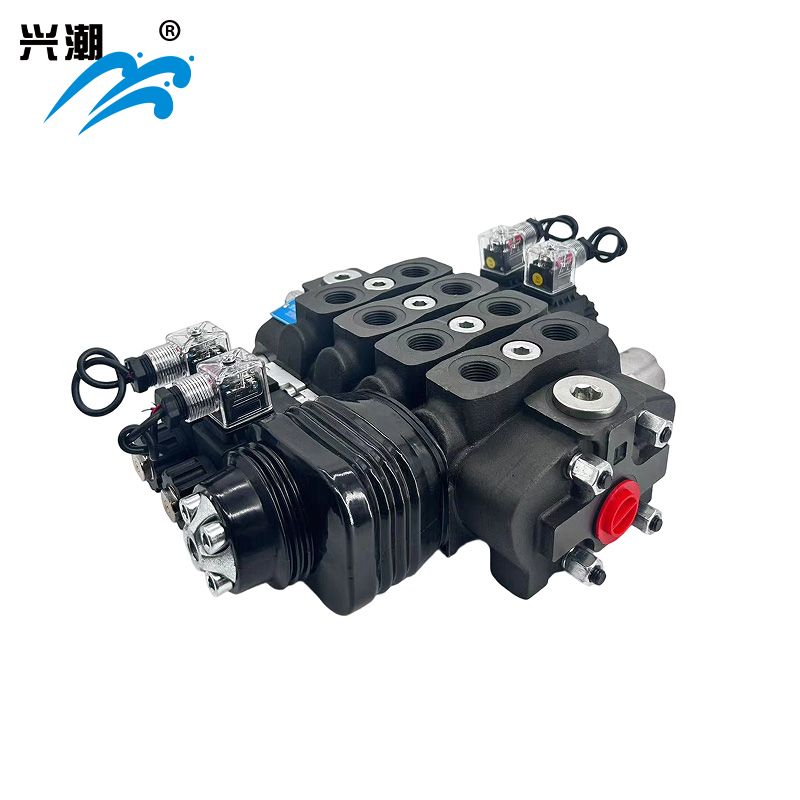

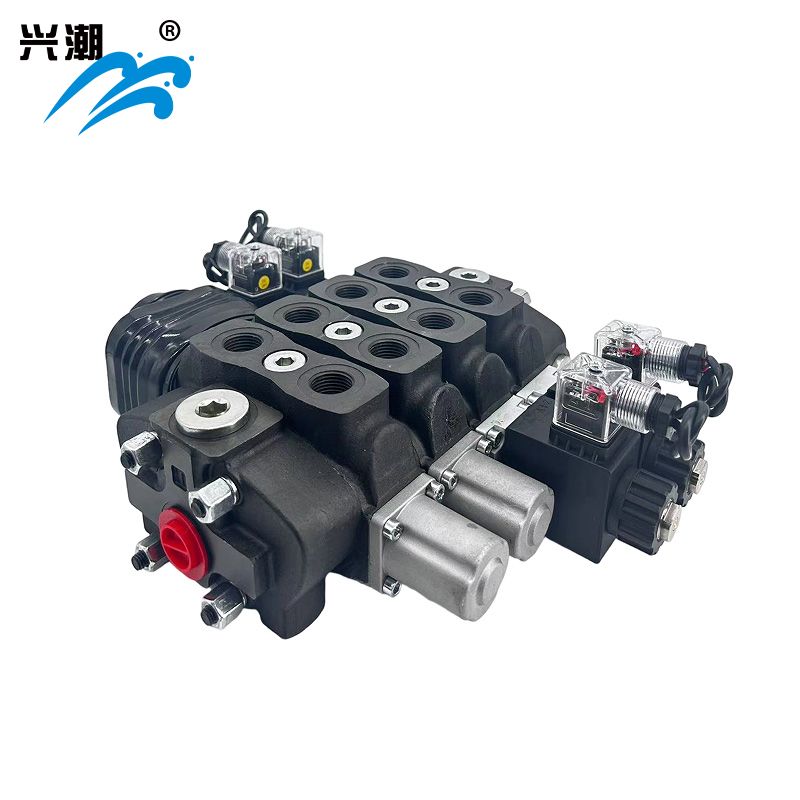

The SD8 series multi way valve is a simple, compact, and sturdy split type valve that can be configured into 1 to 14 combination models according to demand, with two hydraulic systems: center open and closed. Each reversing link is equipped with a main relief valve and a load check valve.
Product description
The SD8 series multi way valve is a simple, compact, and sturdy split type valve that can be configured into 1 to 14 combination models according to demand, with two hydraulic systems: center open and closed. Each reversing link is equipped with a main relief valve and a load check valve.
Optional parallel or series oil circuits. The control mode provides manual, pneumatic, hydraulic, electro-hydraulic, and remote control modes. This valve is applied to hydraulic systems of engineering machinery, environmental sanitation machinery, mining machinery, and other machinery.

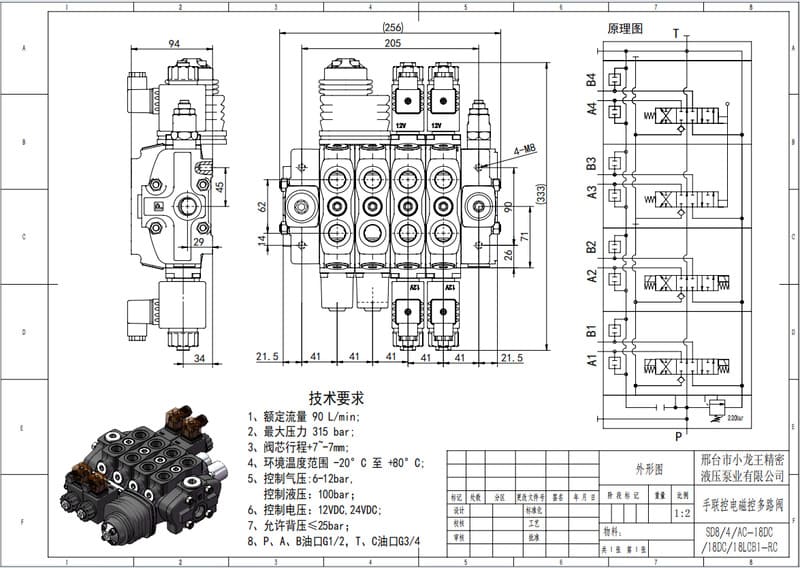

SD8 / 2 - AR - OT - OT - RC -PT(G3/4)AB(G1/2)
● SD8: Multi way valve series code
● 2: Number of reversing connections: 1-14 connections
● AR: Inlet valve connection: Oil inlet on the left side of AL, oil inlet on the right side of AR
● OT: Directional valve connection: Slide valve function: O, H, P Y, K and other functions; Control mode: W steel ball positioning, T spring reset;
● RC: Return oil tail joint: RC side outlet: RD upper outlet; RE upper outlet and side sleeve; RK upper exit, closed center: When RV is equipped with a back pressure valve, it needs to be used in conjunction with an electro-hydraulic control device;
● PT(G3/4)AB(G1/2): Working oil port thread
| Main Projects | Metric System | American System |
| Rated Flow Rate | 120 L/min at the entrance of P | 32 US gpm |
| Maximum Pressure | 100 L/min on ports A and B | 26 US gpm |
| Back Pressure (Maximum Value) | 315 bar at the T exit port | 4800 psi |
| Leakage A(B)⇒T (Standard) | Δp=100 bar (1450 psi) | 360 psi |
| Medium | Mineral Oil | Mineral Oil |
| Fluid Temperature | -20°C to 80°C | -4°F to 176°F |
| Ambient Temperature | -20°C to 100°C | -4°F to 212°F |
| Filtration | ~/19/16 – ISO 4406 NAS 1638 – class 10 | ~/19/16 – ISO 4406 NAS 1638 – class 10 |
Coated sand casting components have been widely used in various industries due to their high precision, complex structural forming ability, and excellent surface quality. We provide hydraulic solutions such as gear pumps, multi way valves, solenoid valves, hydraulic motors, etc. for the engineering machinery, agricultural machinery, coal mining machinery, metallurgical and chemical industries.
The materials used include gray cast iron, ductile iron, and nodular cast iron
All of these materials are designed to ensure lightweight structures, enhance wear resistance, and reliability under extreme environmental conditions.
