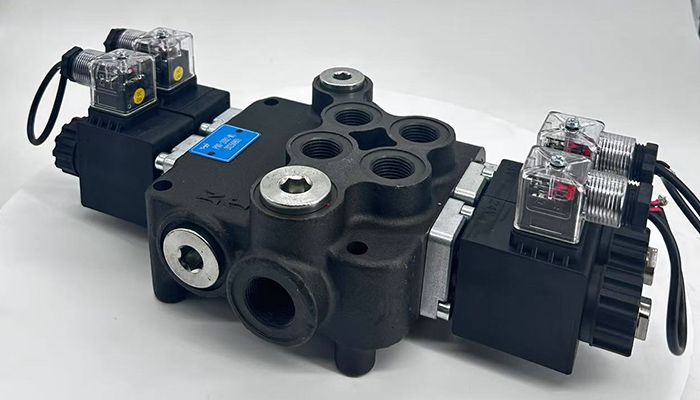

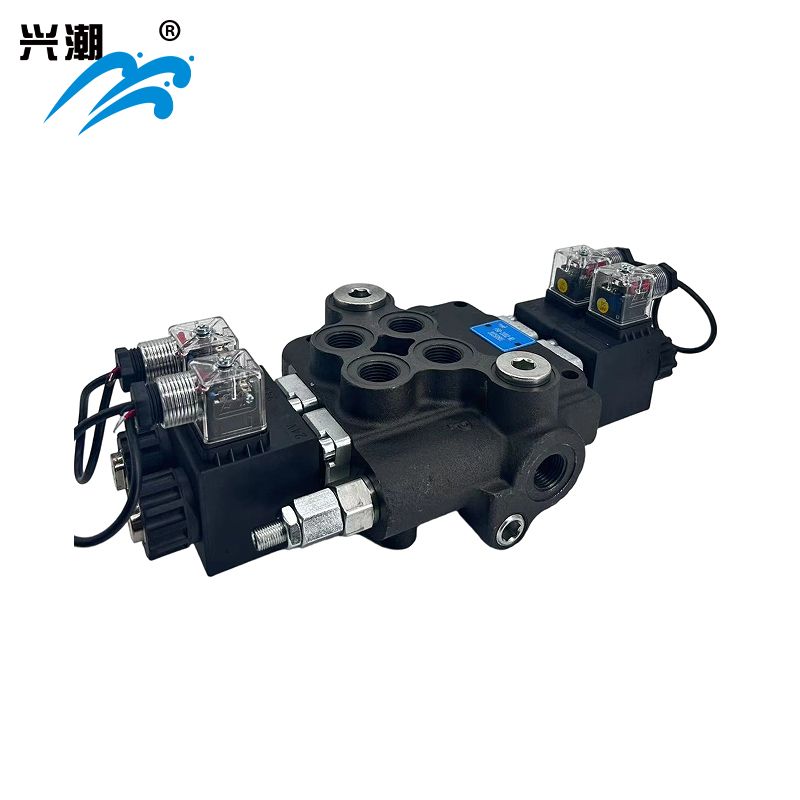

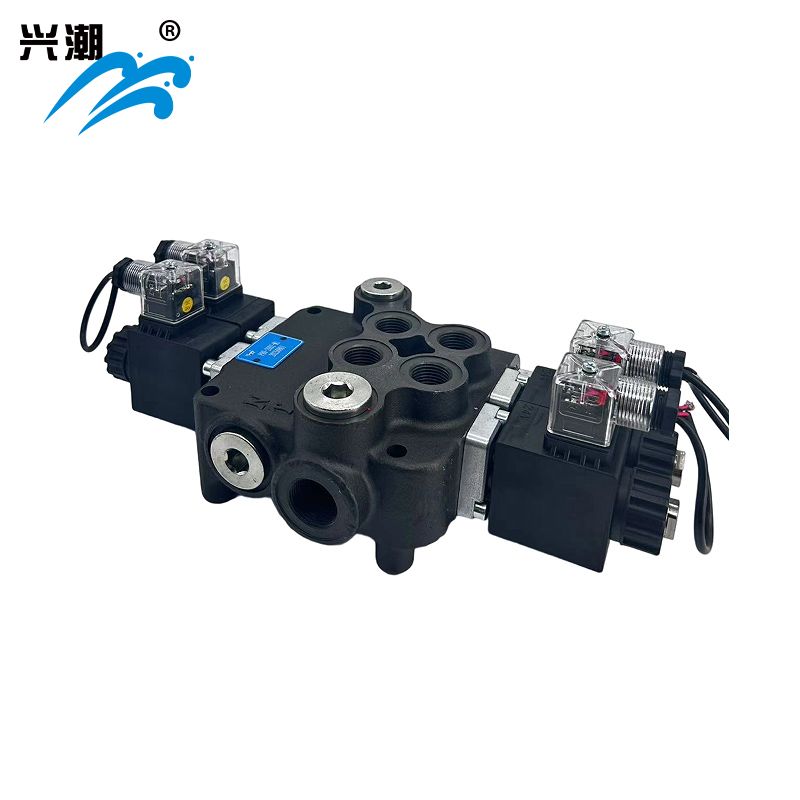

The P80 Series Solenoid-Controlled Monoblock Directional Control Valve is a medium- to high-pressure integrated valve developed with advanced European technology.
This valve is electrically controlled by solenoid valves, providing reliable and precise operation.
It can be configured with parallel or series circuits and includes a power beyond port to connect with other hydraulic components, supplying a consistent power source.
The specially designed sealing system ensures excellent sealing performance and long service life.
The P80 Series is widely used in the hydraulic systems of forklifts, sanitation vehicles, small loaders, and other types of construction machinery.
P80 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
● The monoblock directional control valves-solenoid operated, offer perfect choice whether you are designing a new system or just simply trying to get more out of your current system. With two special spools and 6 different monoblock housings these valves can meet the specific needs of your application and hydraulic schemes by their double acting in 3 positions A and D spools.
● Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
● Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
● Oil way: Parallel circuit, power beyond option
● Coils, Connector ISO4400: 12VDC, 24VDC
● Threads:P,A,B-G1/2, SAE10, T-G3/4,SAE12
● Valve construction: Monoblock construction, 1-6 levers. Precise bore honing and spool grinding results in less cross-port leakage and less wasted energy. These precise valves also allow for interchangeable spools for easy on place maintainance.
P80-OT 24VDC
P：Monoblock Directional Control Valve
80：Nom. Flow Rate:80(mL/min )
O：(Spool Function)0、A、Y
24VDC：Voltage:DC12V, DC24V
|
(Mpa)
Nom. pressure
|
(Mpa)
Max. pressure
|
(L/min)
Nom. Flow rate
|
(L/min)
Max. Flow rate
|
(Mpa)
Back pressure
|
hydraulic oil
|
|
(℃)
Tem.rang
|
(mm2/s)
visc.rang
|
(μm)
filtrating accuracy
|
|
20
|
31
|
80
|
80
|
≤1
|
-20~+80
|
10~400
|
≤10
|
T: Positioning method: T spring return (Spring Return); W steel ball positioning (Detent Control)
Coated sand casting components have been widely used in various industries due to their high precision, complex structural forming ability, and excellent surface quality. We provide hydraulic solutions such as gear pumps, multi way valves, solenoid valves, hydraulic motors, etc. for the engineering machinery, agricultural machinery, coal mining machinery, metallurgical and chemical industries.
The materials used include gray cast iron, ductile iron, and nodular cast iron
All of these materials are designed to ensure lightweight structures, enhance wear resistance, and reliability under extreme environmental conditions.
