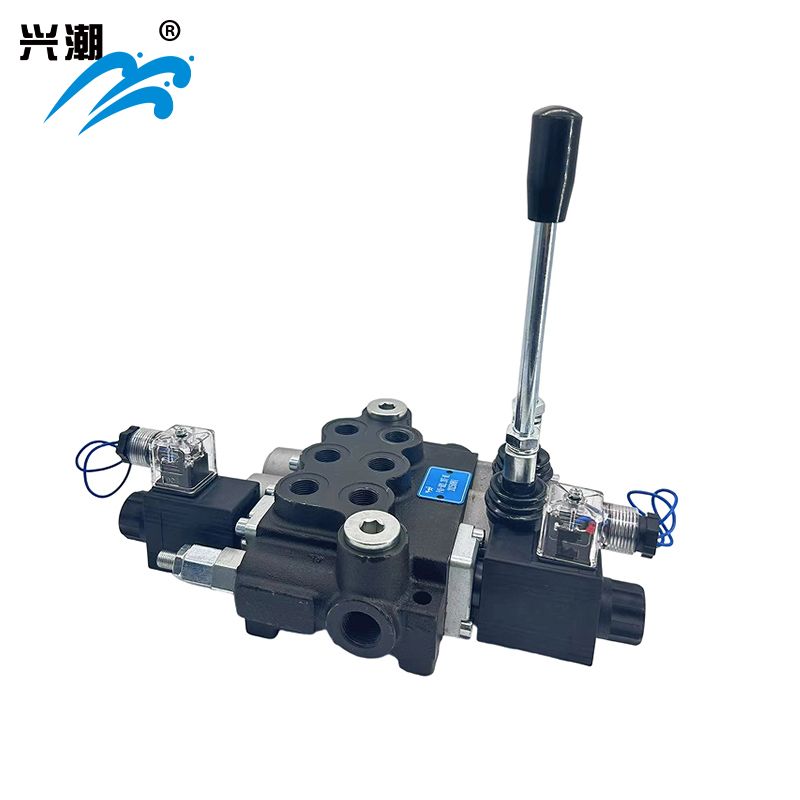

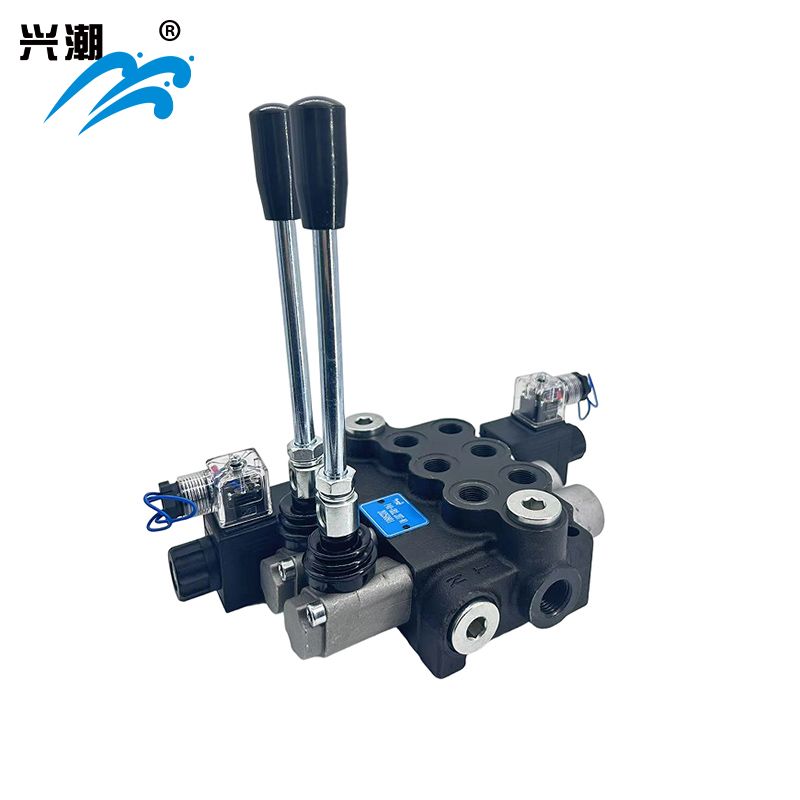

The P40 series integral multi way valve is a medium high pressure integral multi way valve introduced by our company from Europe. Overflow valves and one-way valves can be installed on the valve according to customer requirements.
Product Description
The P40 series integral multi way valve is a medium high pressure integral multi way valve introduced by our company from Europe. Overflow valves and one-way valves can be installed on the valve according to customer requirements. The overflow valve can adjust the pressure, and the one-way valve prevents the oil from flowing back. The slide valve function of the directional valve includes A, O, P, Y, etc., which can be combined arbitrarily.
The directional handle has two installation forms for easy operation in different directions. The valve adopts parallel or series oil circuit and is designed with a pressure output port connected to other hydraulic components to provide power source. Specially designed sealing method ensures excellent sealing performance of the valve. This valve is widely used in hydraulic systems of construction machinery such as forklifts, sanitation vehicles, and small loaders.
● P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
● Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
● Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
● Oil way: Parallel circuit, power beyond option
● Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
● Valve construction: monoblock construction, 1-7 levers.
● Spool Function: O,Y, P,A.
● Option: Hydraulic lock is available to be added on A and B port.
● Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
● P: Monoblock Directional Control Valve
● 40: Nom.Flow Rate: 40（mL/min）
● F: Nom.Pressure（MPa): E16、F 20
● O: Spool Function O、A、Y
● T: Positioning method: SpringReturn; W Steel Ball Positioning (Deternt Control)
| Nominal Pressure (MPa) | Max. Pressure (MPa) | Nom. Flow rate (L/min) | Max. Flow rate (L/min) | Back Pressure (MPa) | Temperature Range (℃) | Viscosity Range (mm²/S) | Filtering Accuracy (μm) |
| 20 | 31.5 | 40 | 40 | ≤1 | -20 ~ +80 | 10 ~ 400 |
≤10 |
Coated sand casting components have been widely used in various industries due to their high precision, complex structural forming ability, and excellent surface quality. We provide hydraulic solutions such as gear pumps, multi way valves, solenoid valves, hydraulic motors, etc. for the engineering machinery, agricultural machinery, coal mining machinery, metallurgical and chemical industries.
The materials used include gray cast iron, ductile iron, and nodular cast iron
All of these materials are designed to ensure lightweight structures, enhance wear resistance, and reliability under extreme environmental conditions.
