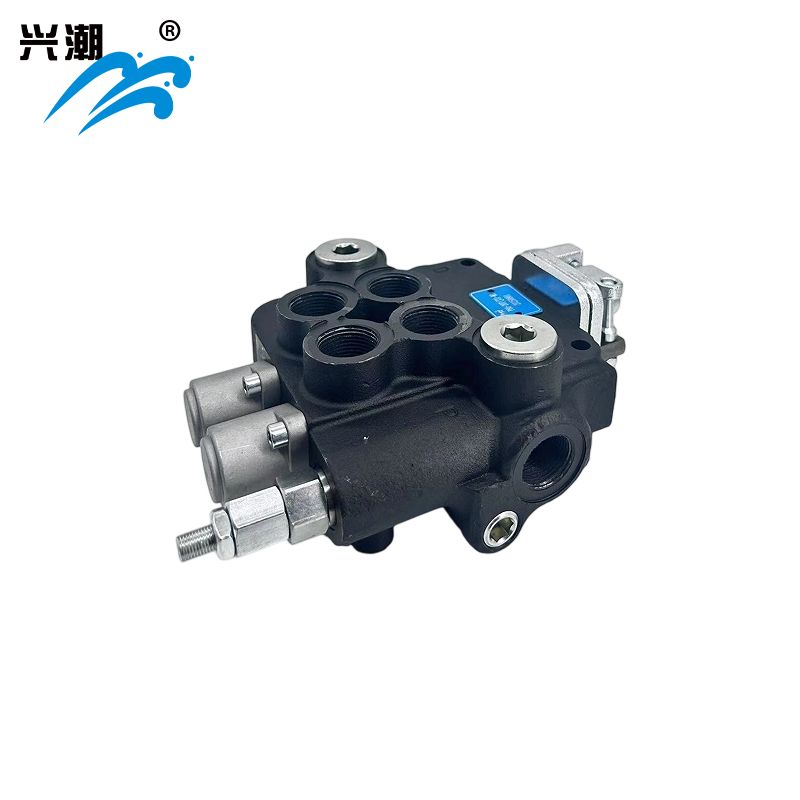

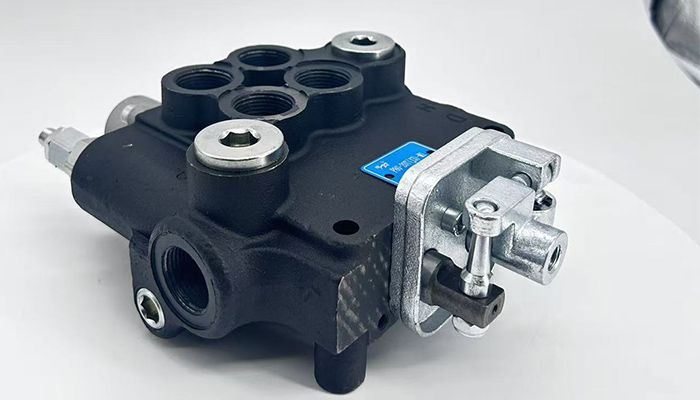

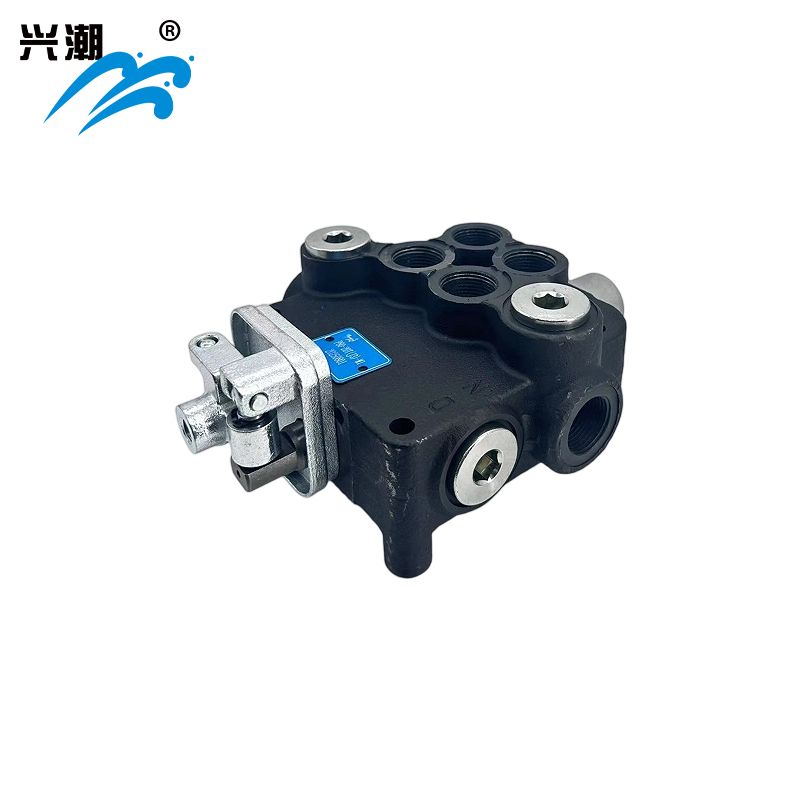

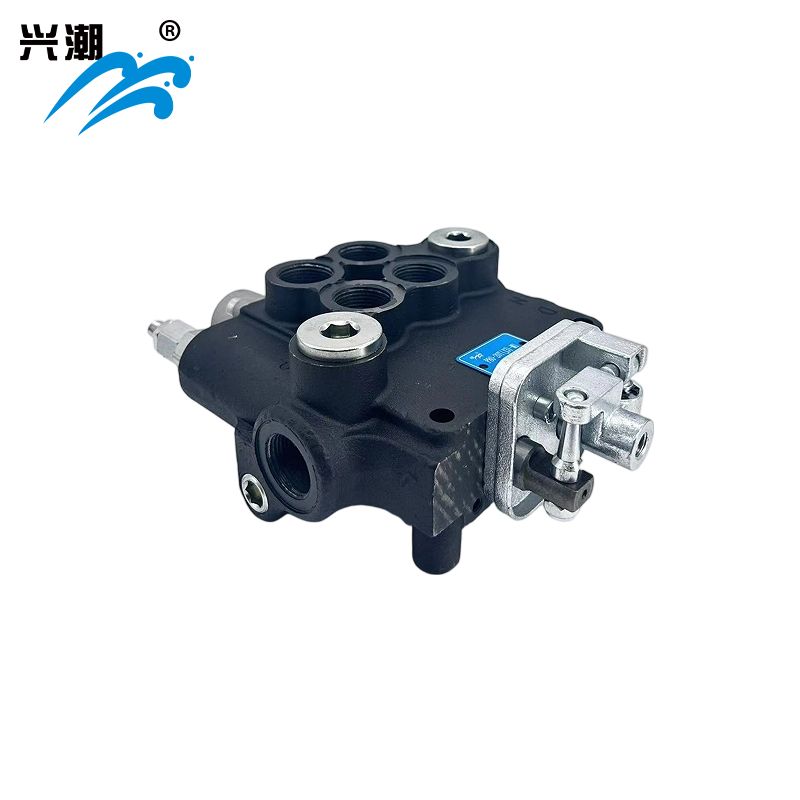

The P80 Series Monoblock Directional Control Valve is a medium- to high-pressure valve introduced from advanced European technology.
According to customer requirements, the valve can be equipped with relief valves and check valves. The relief valve allows pressure adjustment, while the check valve prevents oil backflow.
The spool functions include A, O, P, Y, etc., which can be freely combined as needed.
Two handle installation options are available, making operation convenient from different directions.
The valve adopts parallel or series circuits and features a power beyond port to connect with other hydraulic components, providing a stable power source.
With a specially designed sealing structure, the valve ensures excellent sealing performance and durability.
The P80 series is widely used in the hydraulic systems of forklifts, sanitation vehicles, small loaders, and other construction machinery.
P80 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
● Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
● Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
● Oil way: Parallel circuit, power beyond option
● Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
● Valve construction: monoblock construction, 1-6 levers.
● Spool Function: O,Y, P,A.
● Option:Hydraulic lock is available to be added on A and B port.
● Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

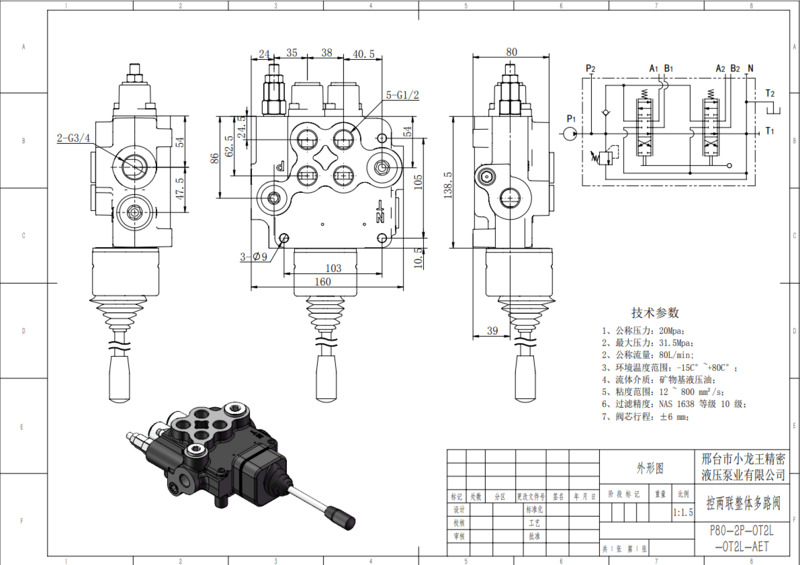

P80-OT
P：Monoblock Directional Control Valve
80：Nom. Flow Rate:80(mL/min )
O：(Spool Function)0、A、Y
T: Positioning method: T spring return (Spring Return); W steel ball positioning (Detent Control)
|
(Mpa)
Nom. pressure
|
(Mpa)
Max. pressure
|
(L/min)
Nom. Flow rate
|
(L/min)
Max. Flow rate
|
(Mpa)
Back pressure
|
Hydraulic oil
|
|
(℃)
Tem.rang
|
(mm2/s)
visc.rang
|
(μm)
filtrating accuracy
|
|
20
|
31.5
|
80
|
80
|
≤1
|
-20~+80
|
10~400
|
≤10
|
Coated sand casting components have been widely used in various industries due to their high precision, complex structural forming ability, and excellent surface quality. We provide hydraulic solutions such as gear pumps, multi way valves, solenoid valves, hydraulic motors, etc. for the engineering machinery, agricultural machinery, coal mining machinery, metallurgical and chemical industries.
The materials used include gray cast iron, ductile iron, and nodular cast iron
All of these materials are designed to ensure lightweight structures, enhance wear resistance, and reliability under extreme environmental conditions.
