Customized HLCB-D HLCB-D06/06/10/12/16 Gear Pump New Condition Constant Flow Pump for Tractor Spare Parts Production.
Product Description
Customized HLCB-D HLCB-D06/06/10/12/16 Gear Pump New Condition Constant Flow Pump for Tractor Spare Parts Production.
|
Model |
Nominal displacement (ml/r) |
Pressure (Mpa) |
Speed(rpm) |
Flow |
||
|
Rated |
Min |
Rated |
Max |
L/min |
||
|
HLCB-D06/06 |
6 |
10 |
800 |
2000 |
3000 |
4,6,8 |
|
HLCB-D08/08 |
8 |
6,8,10 |
||||
|
HLCB-D10/10 |
10 |
8,10,12 |
||||
|
HLCB-D12/12 |
12 |
10,12,14 |
||||
|
HLCB-D16/16 |
16 |
14,16,18 |
||||
|
HLCB-D20/20 |
20 |
18,20,22,25 |
||||

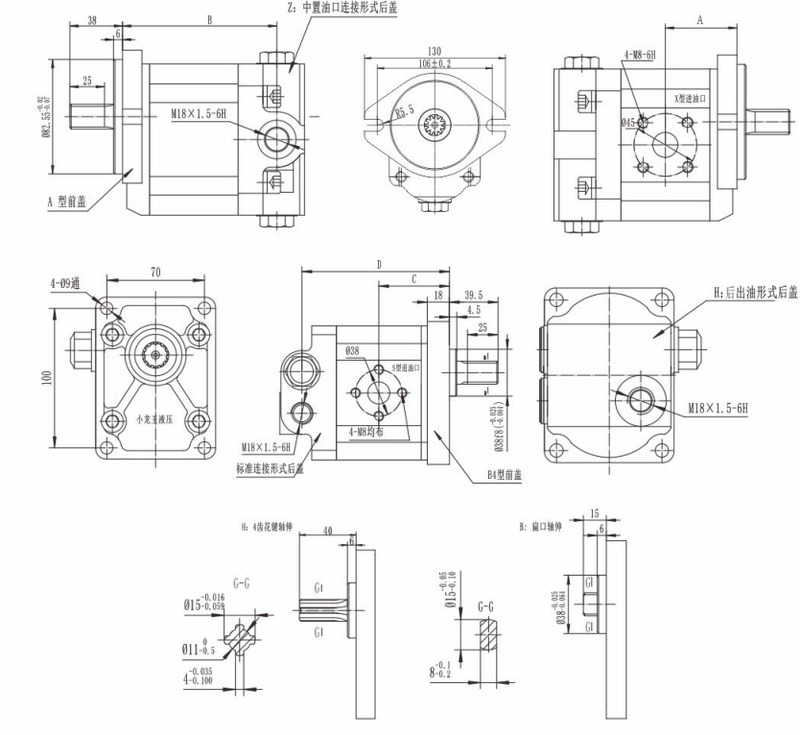

The HLCB series gear pump is a constant flow pump composed of an external meshing gear pump with axial compensation and radial hydraulic balance, and a constant flow relief valve. This series of products can provide a constant flow rate for the system, ensuring safe, reliable, and stable operation of the system.
Mainly used for hydraulic steering systems in agricultural machinery and industrial vehicles.
|
Parameter |
Value |
|
Number of Teeth |
11 |
|
Diametral Pitch |
16/32 |
|
Pressure Angle |
30° |
|
Minor Diameter |
Ø15.34 - Ø15.46 |
|
Major Diameter |
Ø18.63 -0.14 |
|
Parameter |
Value |
|
Number of Teeth |
11 |
|
Module |
1.5 |
|
Pressure Angle |
30° |
|
Minor Diameter |
Ø14.25 -0.127 |
|
Major Diameter |
Ø18.0 -0.127 |
|
Parameter |
Value |
|
Number of Teeth |
16 |
|
Module |
1 |
|
Pressure Angle |
30° |
|
Minor Diameter |
Ø14.5 |
|
Major Diameter |
Ø17.0 -0.04 |
Coated sand casting components have been widely used in various industries due to their high precision, complex structural forming ability, and excellent surface quality. We provide hydraulic solutions such as gear pumps, multi way valves, solenoid valves, hydraulic motors, etc. for the engineering machinery, agricultural machinery, coal mining machinery, metallurgical and chemical industries.
The materials used include gray cast iron, ductile iron, and nodular cast iron
All of these materials are designed to ensure lightweight structures, enhance wear resistance, and reliability under extreme environmental conditions.
