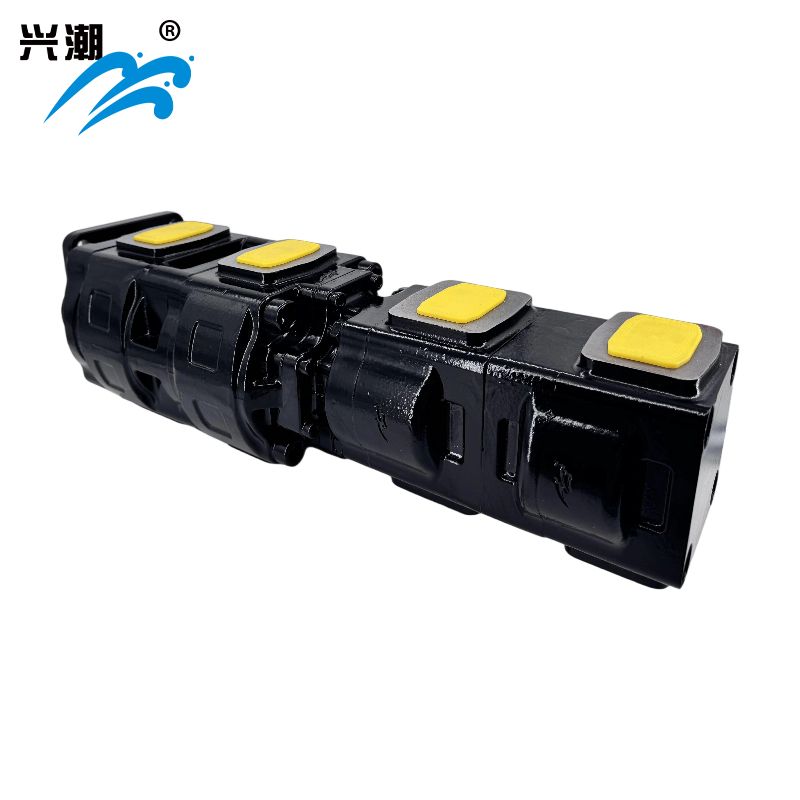

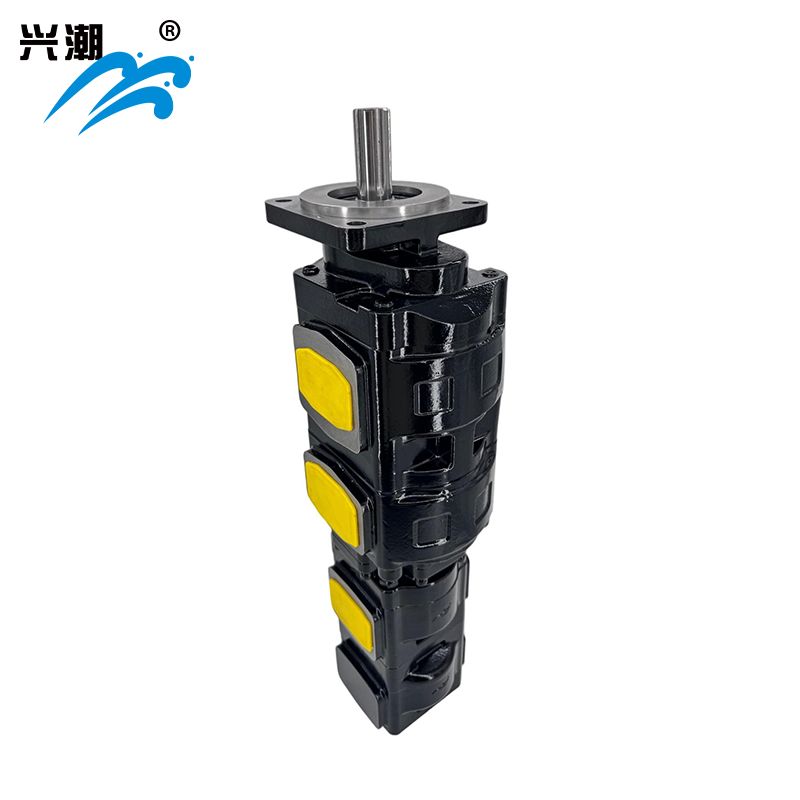

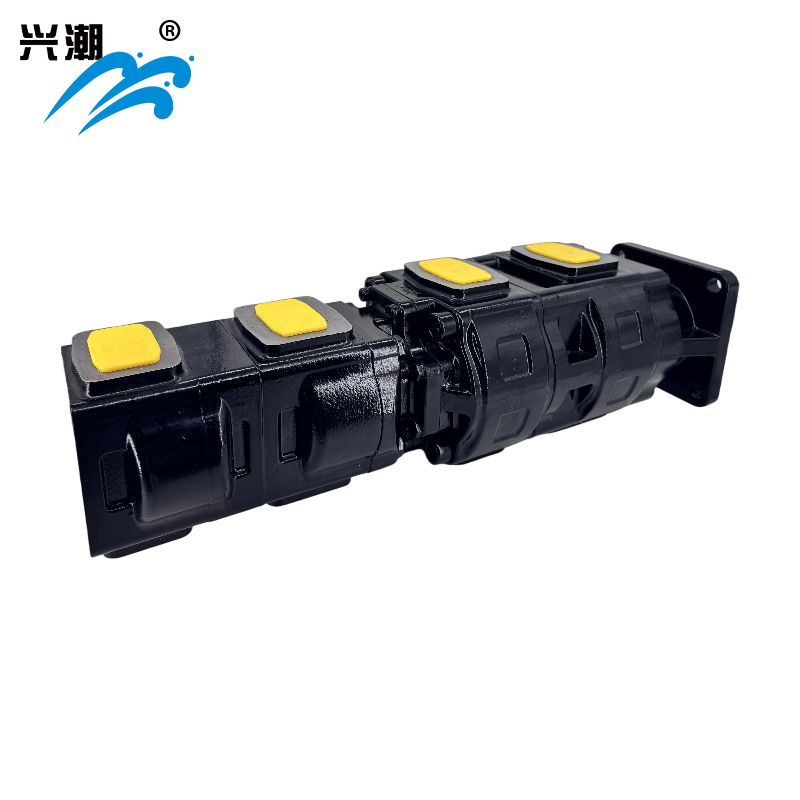

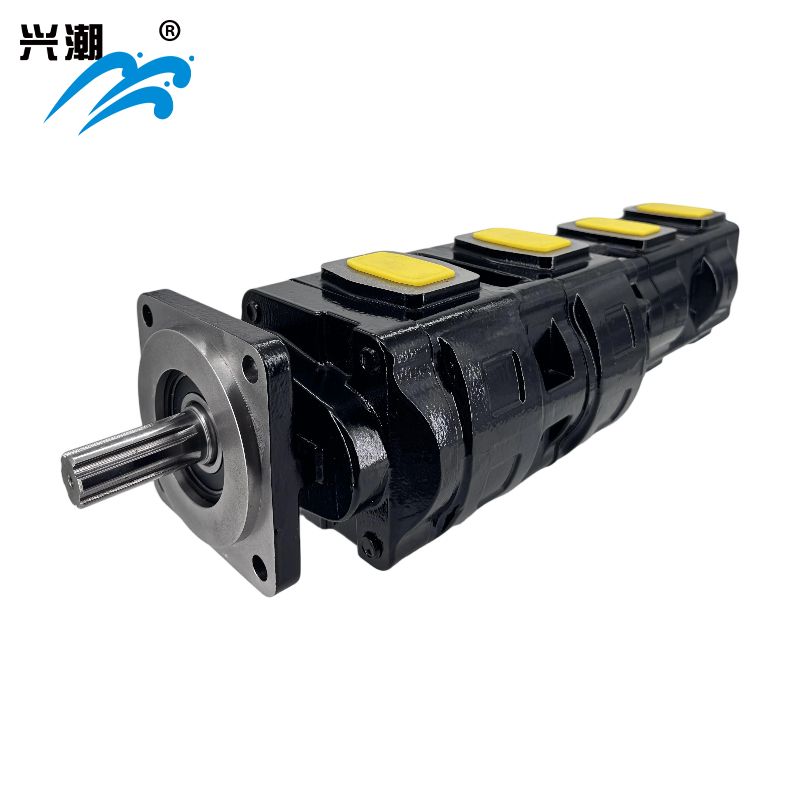

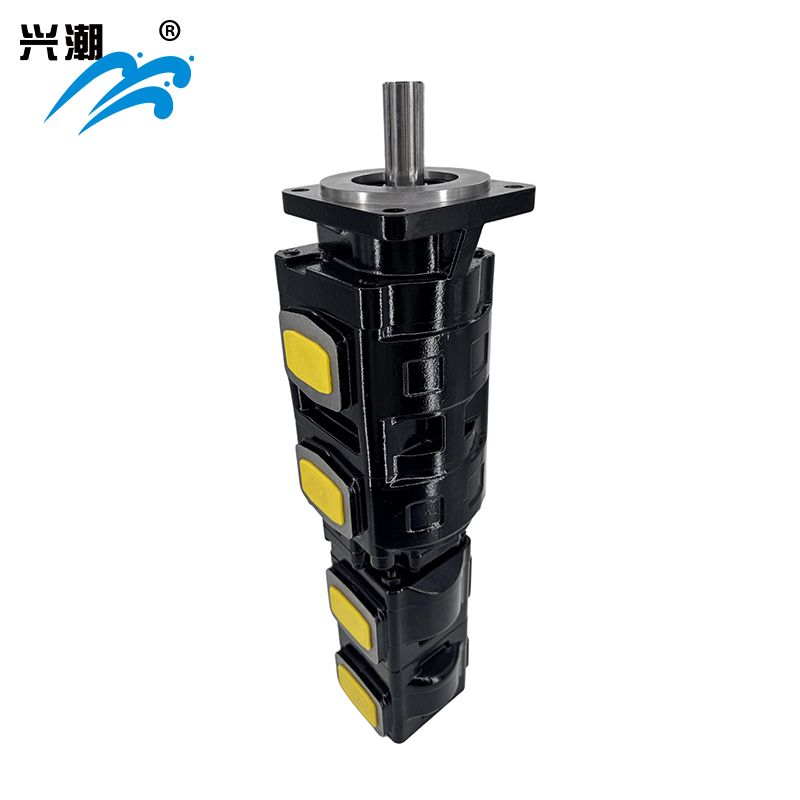

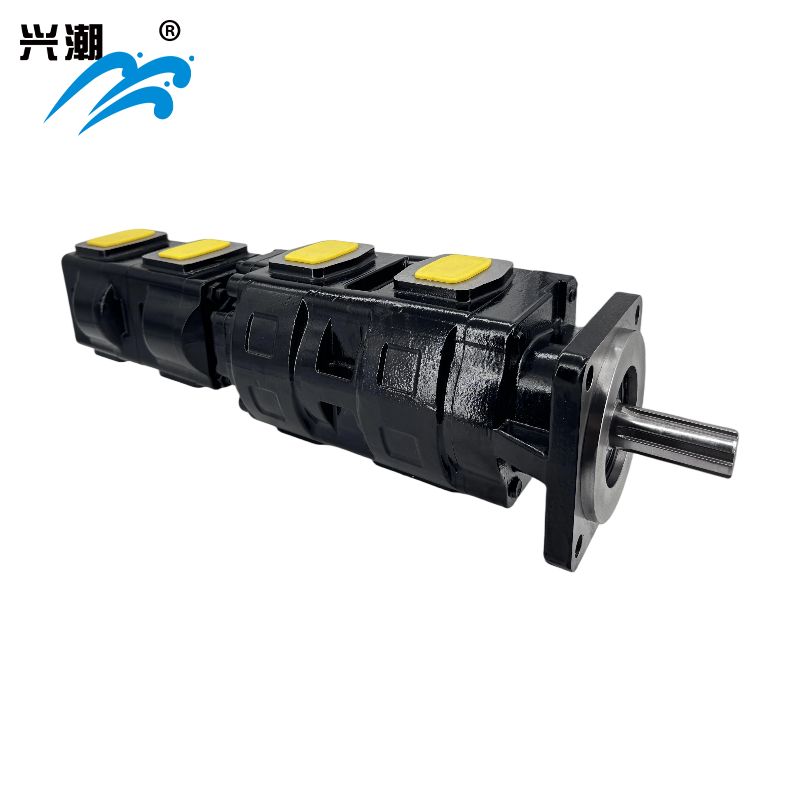

The PGP60-PGP20 series gear pumps are constructed from high-strength cast iron, combining two distinct series into a single structure. They are suitable for applications in construction machinery, coal mining machinery, and other fields.
Product Description
The PGP60-PGP20 series gear pumps are constructed from high-strength cast iron, combining two distinct series into a single structure. They are suitable for applications in construction machinery, coal mining machinery, and other fields. These pumps feature automatic axial clearance compensation, high pressure resistance, high volumetric efficiency, and a long service life. They can be manufactured in duplex, triplex, and quadruple configurations to meet customer needs. Custom spline types and various standard inlet and outlet port styles are also available.
| PGP60 | Gear pump code |
| 63/63 | Displacement: 63/63 |
| PGP20 | Gear pump code |
| 40/25 | Displacement: 40/25 |
| F | Oil port form: flange connection |
| L | Rotation direction: L: Left rotation; R: Right rotation (omitted) |
| Model | Front Pump Displacement (ml/r) | Dual Pump Displacement (ml/r) | Triple Pump Displacement (ml/r) | Four-way Pump Displacement (ml/r) | Rated Pressure (MPa) | Maximum Pressure (MPa) | Nominal Speed (r/min) | Minimum Speed (r/min) |
| PGP60-63/63-PGP20-40/25 | 63 | 63 | 40 | 25 | 25 | 30 | 2000 | 600 |
Coated sand casting components have been widely used in various industries due to their high precision, complex structural forming ability, and excellent surface quality. We provide hydraulic solutions such as gear pumps, multi way valves, solenoid valves, hydraulic motors, etc. for the engineering machinery, agricultural machinery, coal mining machinery, metallurgical and chemical industries.
The materials used include gray cast iron, ductile iron, and nodular cast iron
All of these materials are designed to ensure lightweight structures, enhance wear resistance, and reliability under extreme environmental conditions.
Q1.Why Choose Xiaolongwang Hydraulics?
A1: Since 1996, we have been specialized in the production of various hydraulic components. Our business scope covers the full process of design, R&D, production and sales for products like multi-way directional valves, gear pumps, hydraulic motors and hydraulic castings. Our products are sold in more than 20 countries and regions, and have won recognition from numerous customers.
Q2.Do You Provide OEM/ODM Services?
A2: We offer professional OEM/ODM services. When the value of your product order meets a certain standard, we can provide a variety of customized services, including personalized nameplates, exclusive packaging designs and customized product colors to meet your specific needs.
Q3.What Currencies and Payment Methods Are Supported?
A3: We support multiple currencies for transactions. Meanwhile, we provide diverse payment methods such as Telegraphic Transfer (T/T), Alibaba Platform Payment and online bank transfer, ensuring flexible and secure transactions.
Q4.Do You Offer Samples? Are They Free?
A5: We can provide samples for your inspection. The sample fee will be deducted from your subsequent order payment and returned to you, reducing your trial cooperation costs.
Q5.What Is the Delivery Time?
A5: The estimated delivery time ranges from 7 to 30 working days, which will be adjusted according to the quantity of your order. We will keep you updated on the production progress to ensure on-time delivery.
Q6.How to Contact Us?
A6: You can directly click on the "Contact Us" section on our official website. Our sales team provides 24-hour online service and will respond to your inquiries and needs in a timely manner.
Standard packaging uses wooden boxes or wooden pallets wrapped with plastic film.
Customized packaging can also be provided according to customer requirements.
Our professional engineering team is always ready to assist you with technical consultation and feedback.
We can also provide free samples to help you evaluate our products.
We make every effort to deliver the best products and services to our customers.
If you are interested in our company and products, please feel free to contact us by email or phone.
You are also welcome to visit our factory to learn more about our capabilities.
We sincerely welcome customers from all over the world to establish long-term business relationships with us,
and we believe we will share a successful and rewarding cooperation experience together.
Xingtai Xiaolongwang Precision Hydraulic Pump Industry Co., Ltd.
